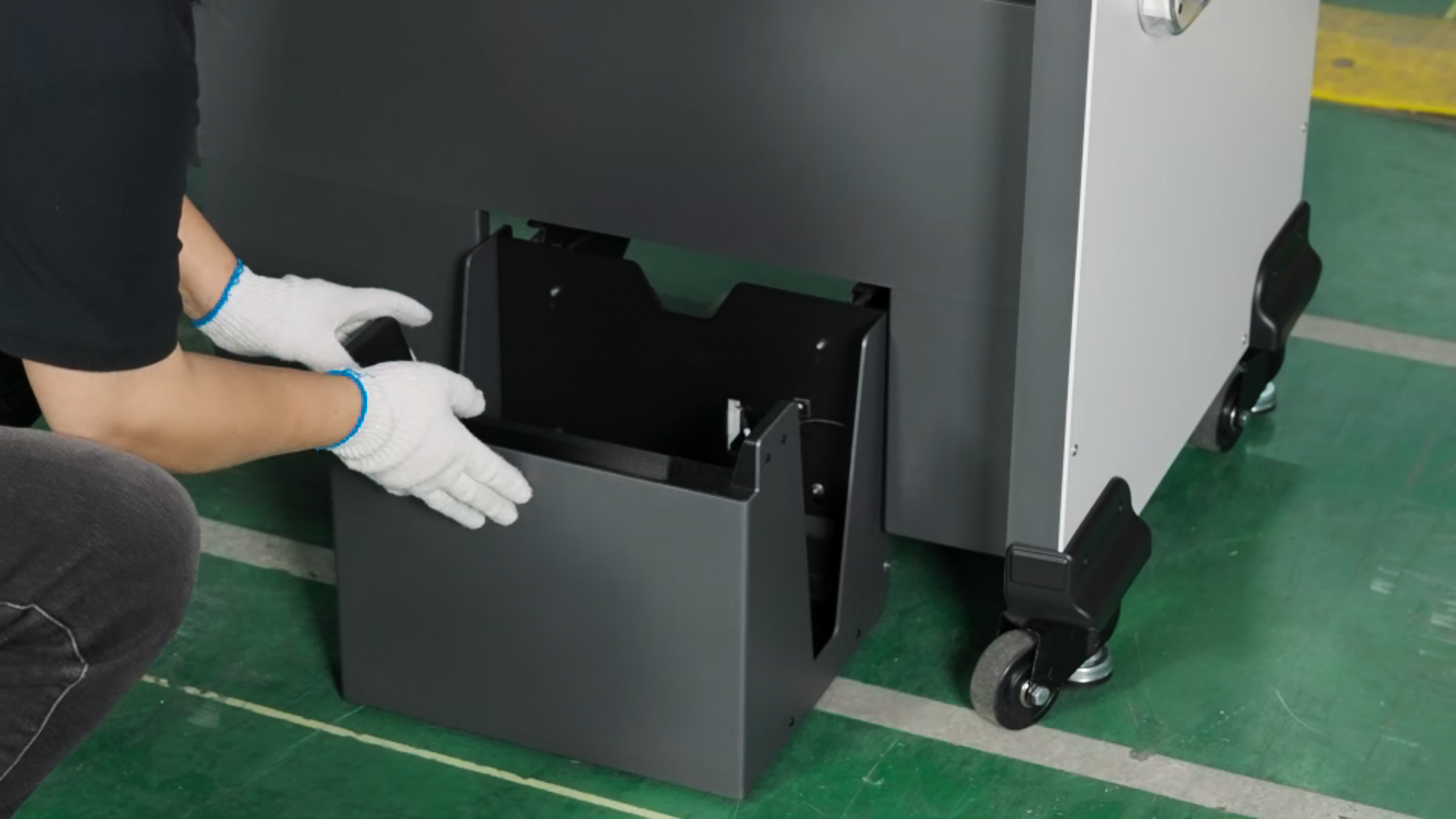

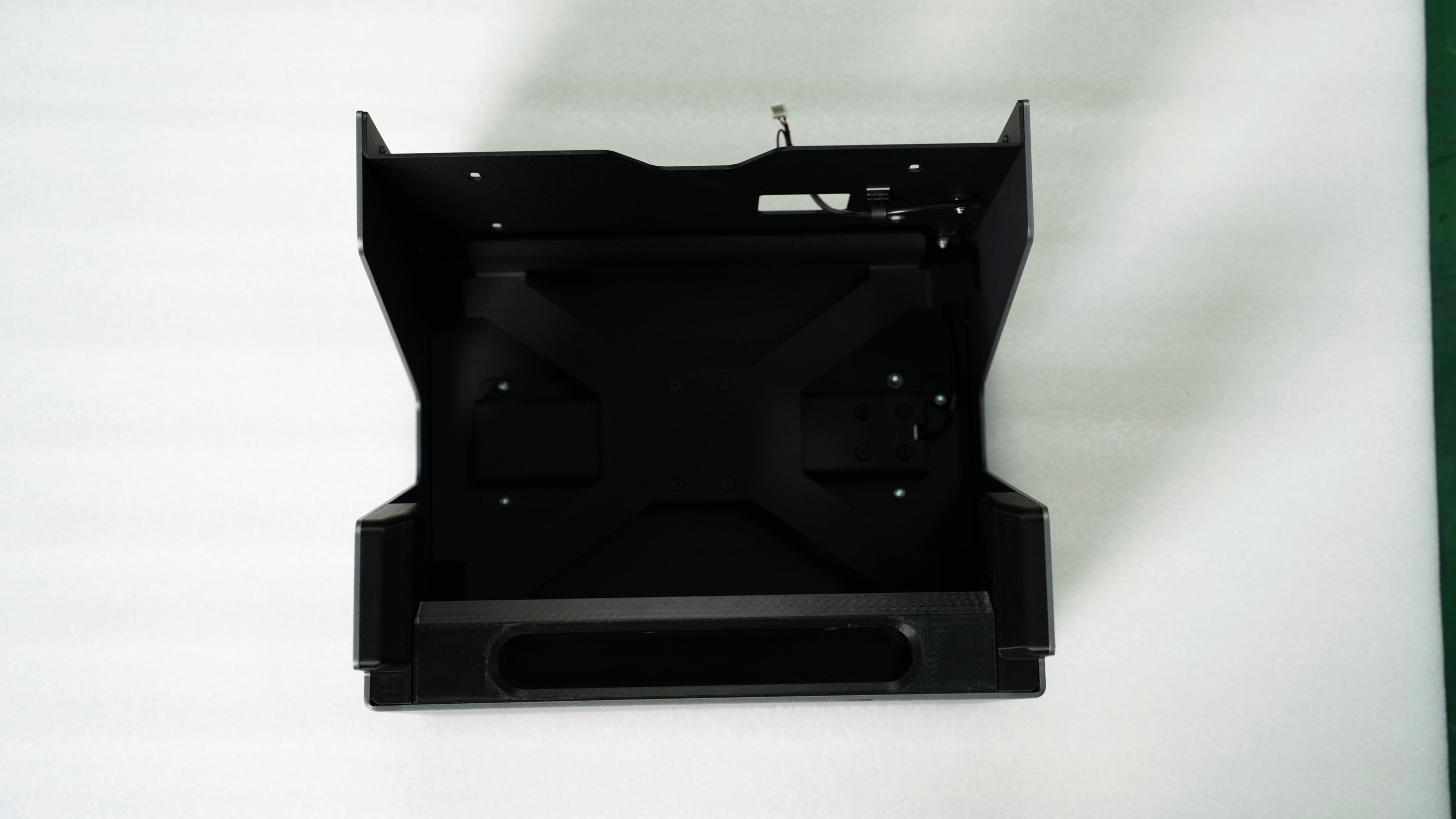

Take out the weighing mechanism.
-

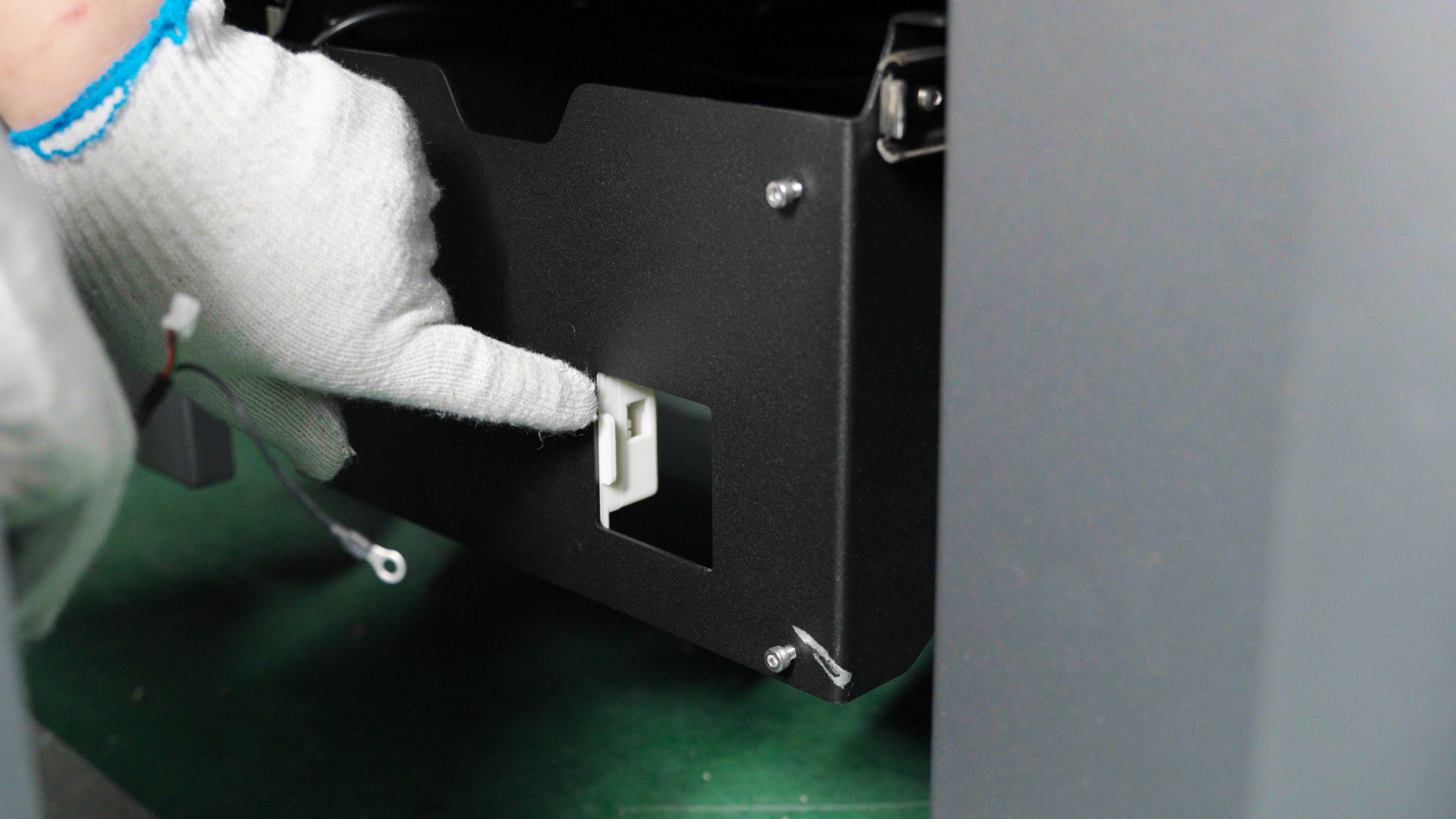

Connect the wire on the weighing mechanism to the interface at the bottom of the C220-P Cleaning Station. Exposed ground wires can be wrapped with electrical tape.
-

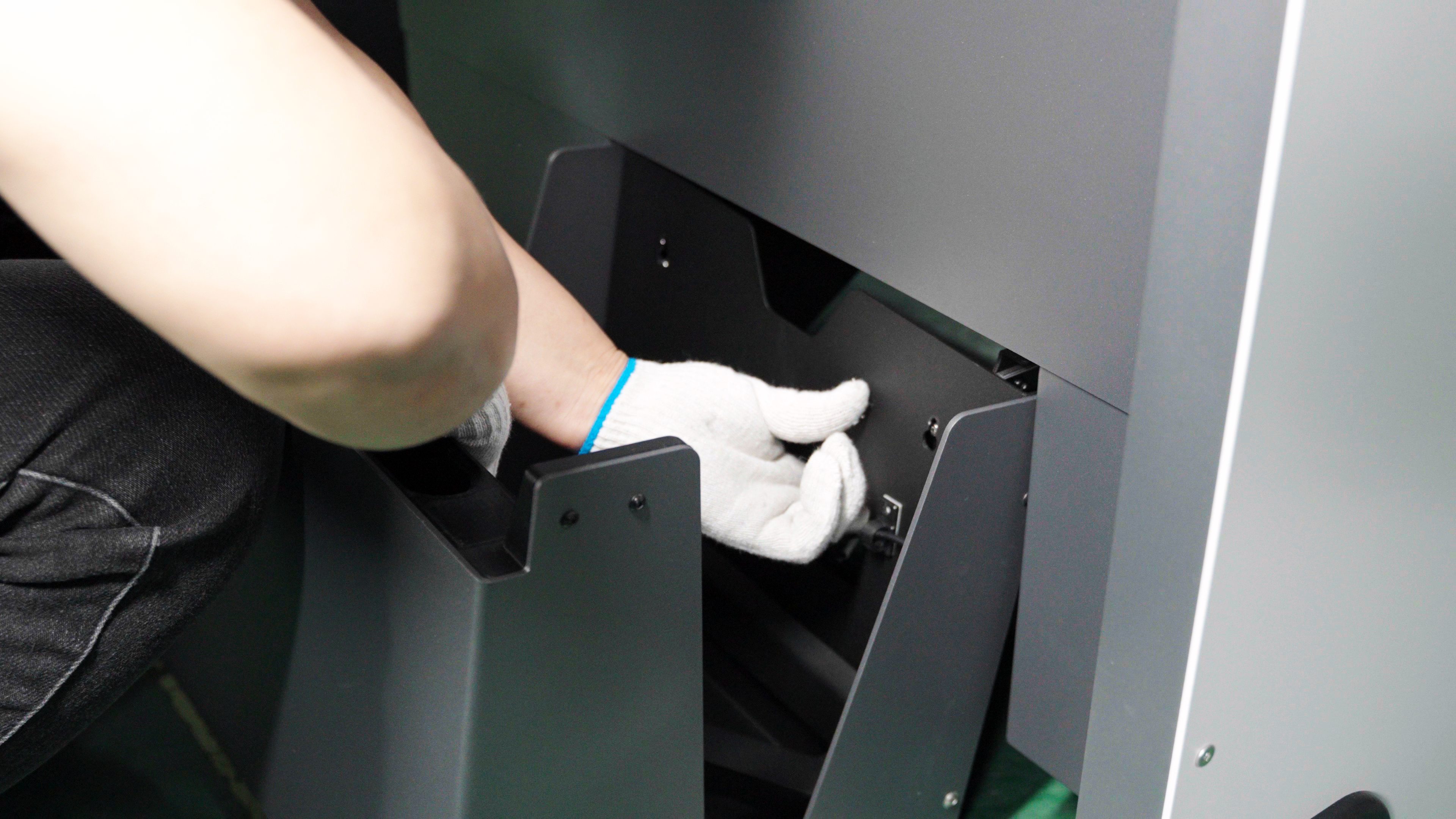

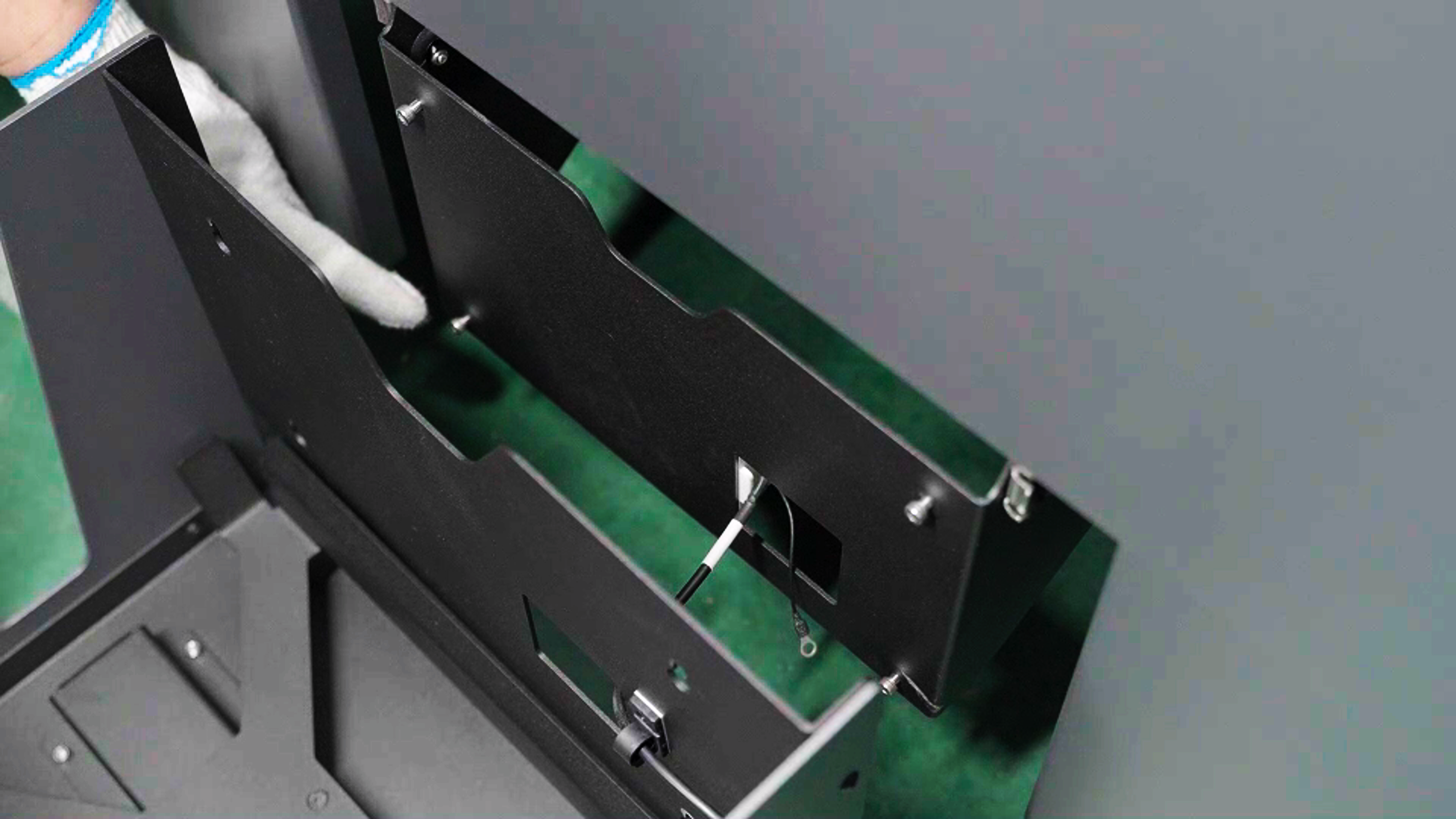

Hold the weighing mechanism with one hand and pull the slide rail with the other, slowly aligning the weighing mechanism's holes with the four screw holes on the slide rail, avoiding pulling on the cables. This process requires some patience; please be careful not to let the weighing mechanism fall and cause injury. It's best to have a second person support the slide rail from behind to prevent it from sliding backward.
-

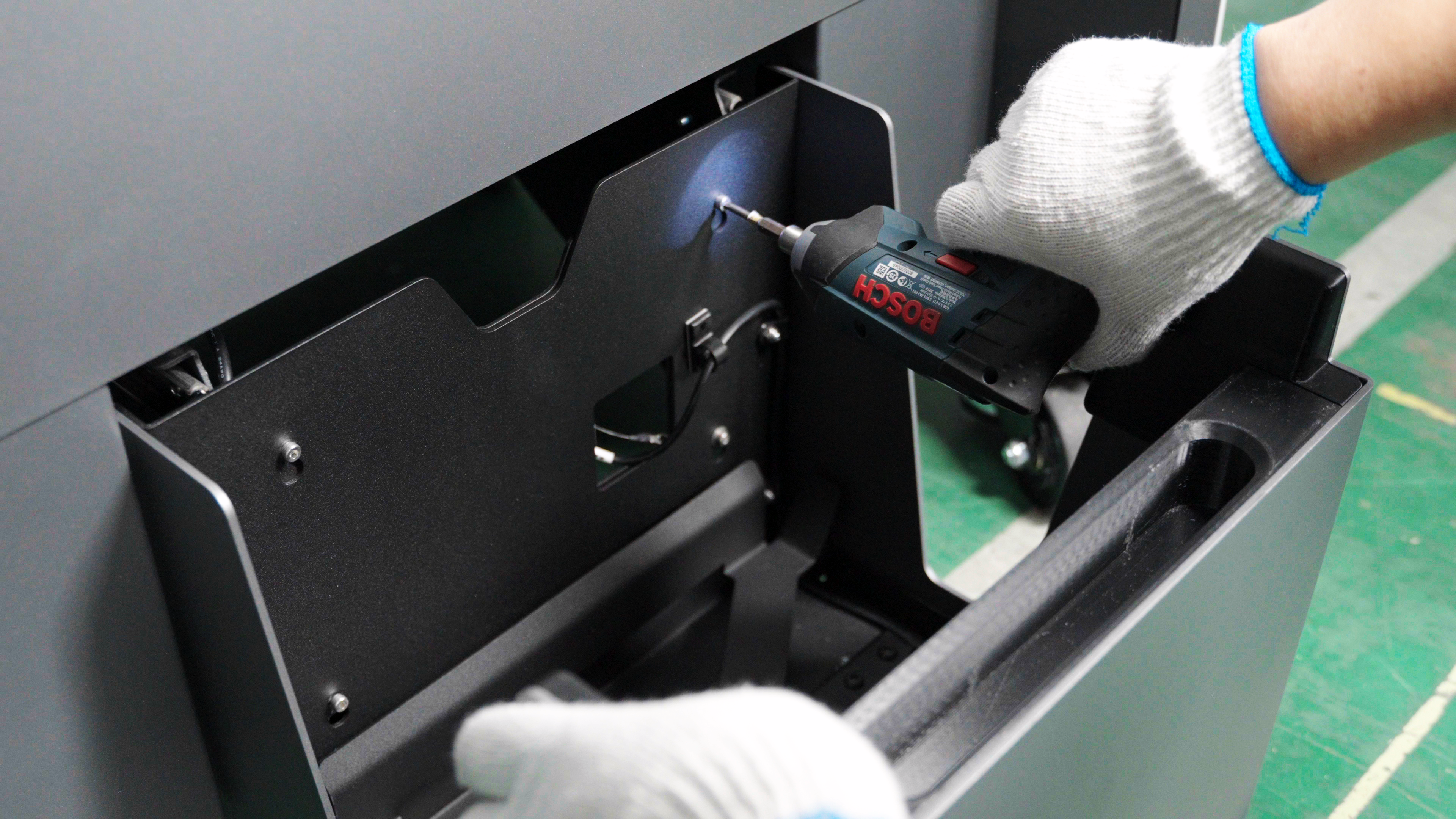

After attaching the weighing mechanism to the four screw holes, tighten the four screws.
-
Push the weighing mechanism to ensure it can be pushed smoothly and prevent it from falling.
